LOCTITE 97112 (pneumatic hand valve (FLEX) with suction function, controlled by foot or hand switch)

No.

IDH.88643


Associated products:
  1. LOCTITE 97102 (integrated semi-automatic controller) (IDH.135550)
  2. LOCTITE 97152 (automatic, dual channel digital multifunction controller to actuate 1-2 dispensing valves and peripheral devices) (IDH.1275665)
  3. LOCTITE Pulse RC50 (semi-automatic integrated dispenser compliant with Industry 4.0 standards) (IDH.2814024)
  4. LOCTITE 97236 finger switch for valves 97112 / 97121 / 97130 (IDH.142644)
  5. LOCTITE 97293, Finger Switch for 97112 / 97121 / 97130 Applicator (IDH.531803)
  6. LOCTITE RC40 (semi-automatic integrated dispenser) (IDH.2814025)

LOCTITE 97112 (pneumatic hand valve (FLEX) with suction function, controlled by foot or hand switch)

LOCTITE 97112 (pneumatic hand valve (FLEX) with suction function, controlled by foot or hand switch) (IDH.88643)


Associated products:
  1. LOCTITE 97102 (integrated semi-automatic controller) (IDH.135550)
  2. LOCTITE 97152 (automatic, dual channel digital multifunction controller to actuate 1-2 dispensing valves and peripheral devices) (IDH.1275665)
  3. LOCTITE Pulse RC50 (semi-automatic integrated dispenser compliant with Industry 4.0 standards) (IDH.2814024)
  4. LOCTITE 97236 finger switch for valves 97112 / 97121 / 97130 (IDH.142644)
  5. LOCTITE 97293, Finger Switch for 97112 / 97121 / 97130 Applicator (IDH.531803)
  6. LOCTITE RC40 (semi-automatic integrated dispenser) (IDH.2814025)
Product description:

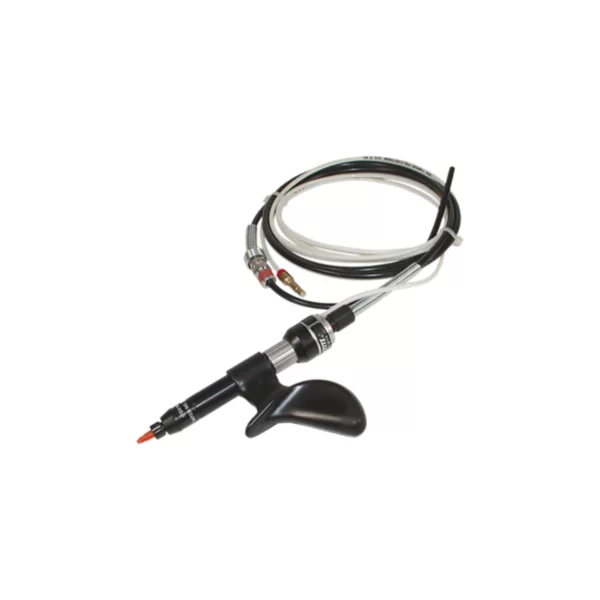

LOCTITE 97112 is a LOCTITE Hand-Held Applicator which is suitable for dispensing LOCTITE products in manual work stations. It is actuated using an electrical finger switch (97236). An air signal sent to this valve opens the pneumatic actuator, allowing adhesive to flow. It also incorporates an adjustable suck-back feature which prevents dripping or stringing. The Applicator interfaces directly with an Integrated Semi-Automatic Dispenser (97009). Further information about the product: biuro@woronko-kleje.pl

Features:

  • Ergonomic design provides comfortable handling
  • Suck-back feature to prevent post-dispense dripping
  • Applicator is closed by spring return of the shut-off piston

    • Parameters:

  • Air input (97112): min. 4 bar, filtered to a maximum of 10 μm
  • Product feedline connection: 1/4''
  • Dimensions (W x H x D): ø 28,5 x 162 mm
  • Weight: 340 g

    • Assortment
