Product description:

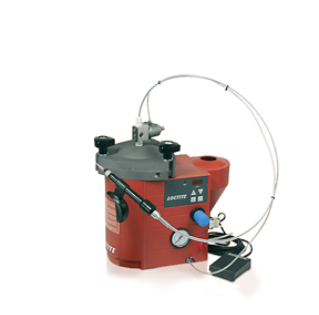

The The Integrated Semi-Automatic Dispensing System is a compact unit providing time-controlled dispensing when combined with an appropriate LOCTITE dispensing valve. The system provides digital of dispensing tyime within the range 0,1 - 99,9 seconds. The controller can be actuated by a footswitch or finger switch. It is also capable of operating in a continuous mode for bead dispensing applications. The reservoir accommodates LOCTITE bottles in 250 ml, 500 g, 1 litre and 2 kg packages. The semi-automatic Dispensing System is required to be connected to an external electrical and pneumatic supply. Reservoir pressure and dispensing time can be set independently of each other. An uncoverd bottle of LOCTITE product is placed directly into the integrated reservoir, and the reservoir lid is clamped in place. The reservoir is then pressurised using clean, filtered dry air. Air within the reservoir will push down on the liquid in the bottle and force it through the product feedline to the dispensing valve. The amount of product dispensed is controlled by three main factors: The pressure in the reservoir, the length of time the dispensing valve remains, and the dispensing needle size. The empty signal is indicated as blinking text "U" on the digital display of the controller. In addition it is signalled by an audible alarm. Voltage free output signals for empty and ready signalling. These can be connected to a higher ranking controller. Further information about the product: biuro@woronko-kleje.pl

Features:
  • Integrated design for simple setup and space economy
  • Precision pressure regulator (0,1-0,4 bar) for reliable dispensing, eliminating air pressure fluctuation
  • Timer-controlled solenoid valve for air-actuated applicator
  • Level sensor to give empty warning

    Parameters:
  • Air input: min. 5 bar
  • Air input: max. 10 bar
  • Air output: 0,1 - 4 bar
  • Power Consumption : 25 W
  • Dimensions (W x H x D): 360 x 335 x 235 mm
