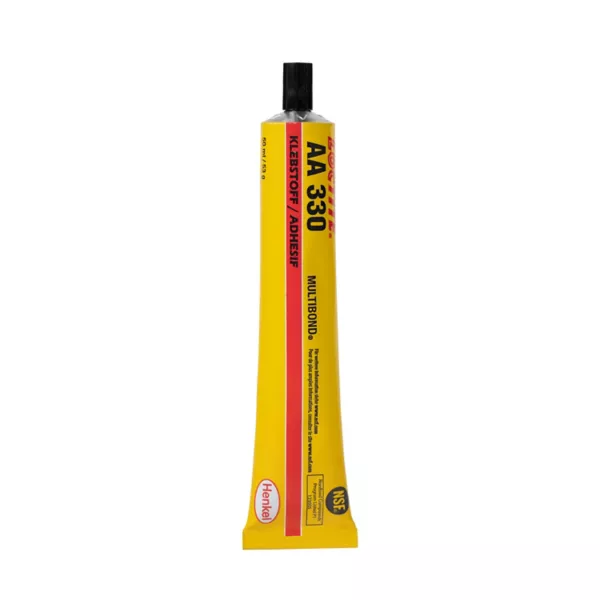

LOCTITE AA 330 - 50ml (yellow acrylic adhesive, up to 100 °C)
No.
IDH.142572
Price
LOCTITE AA 330 - 50ml (yellow acrylic adhesive, up to 100 °C)
Product description:
LOCTITE® AA 330 is a general purpose adhesive that is used to bond metal, wood, ferrite, ceramic and plastic materials.Applications include tool handles, appliances, sporting goods and decorative trim. Further information about the product: biuro@woronko-kleje.pl
Steps to achieve the best adhesive results:
1. For best performance bond surfaces should be clean and free from grease. Use LOCTITE SF 7063.
2. To ensure a fast and reliable cure, activator LOCTITE SF 7386 should be applied to one of the bond surfaces and the adhesive to the other surface. Parts should be assembled within 15 minutes.
3. The recommended bondline gap is 0.1 mm. Where bond gaps are large (up to a maximum of 0.5 mm), or faster cure speed is required, activator LOCTITE 7386 should be applied to both surfaces. Parts should be assembled immediately (within 1 minute).
4. Excess adhesive can be wiped away with organic solvent.
5. Bond should be held clamped until adhesive has fixtured.
6. Product should be allowed to develop full strength before subjecting to any service loads (typically 24 to 72 hours after assembly, depending on bond gap, materials and ambient conditions).
Storage:
Store product in the unopened container in a dry location. Storage information may be indicated on the product container labeling.
Optimal Storage: 8 °C to 21 °C. Storage below 8 °C or greater than 28 °C can adversely affect product properties.
Material removed from containers may be contaminated during use. Do not return product to the original container.
Henkel Corporation cannot assume responsibility for product which has been contaminated or stored under conditions other than those previously indicated.
Parameters:
Working temperature : -55 °C to +100 °C Color : amber
Time to get full strength at the gap 0,05 mm (22 °C):
Full technical information can be found in the technical data sheet.
LOCTITE® AA 330 is a general purpose adhesive that is used to bond metal, wood, ferrite, ceramic and plastic materials.Applications include tool handles, appliances, sporting goods and decorative trim. Further information about the product: biuro@woronko-kleje.pl
Steps to achieve the best adhesive results:
1. For best performance bond surfaces should be clean and free from grease. Use LOCTITE SF 7063.
2. To ensure a fast and reliable cure, activator LOCTITE SF 7386 should be applied to one of the bond surfaces and the adhesive to the other surface. Parts should be assembled within 15 minutes.
3. The recommended bondline gap is 0.1 mm. Where bond gaps are large (up to a maximum of 0.5 mm), or faster cure speed is required, activator LOCTITE 7386 should be applied to both surfaces. Parts should be assembled immediately (within 1 minute).
4. Excess adhesive can be wiped away with organic solvent.
5. Bond should be held clamped until adhesive has fixtured.
6. Product should be allowed to develop full strength before subjecting to any service loads (typically 24 to 72 hours after assembly, depending on bond gap, materials and ambient conditions).
Storage:
Store product in the unopened container in a dry location. Storage information may be indicated on the product container labeling.
Optimal Storage: 8 °C to 21 °C. Storage below 8 °C or greater than 28 °C can adversely affect product properties.
Material removed from containers may be contaminated during use. Do not return product to the original container.
Henkel Corporation cannot assume responsibility for product which has been contaminated or stored under conditions other than those previously indicated.
Parameters:
Time to get full strength at the gap 0,05 mm (22 °C):
- Steel : 24 hours
- Aluminum : 24 hours
- Steel : 2,5 minutes
- Aluminum : 8 minutes
- Lap Shear Strength, ISO 4587:
- Mild steel (grit blasted) N/mm²: 15 to 30 - Tensile Strength, ISO 6922:
- Mild steel (grit blasted) N/mm² 12 to 22
- Lap Shear Strength :
- Mild Steel (grit blasted) N/mm² : ≥16.5
Full technical information can be found in the technical data sheet.
