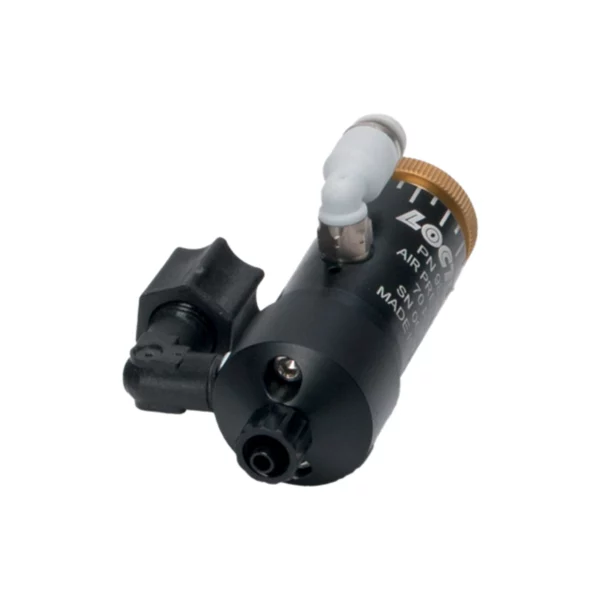

LOCTITE 98009 (precise diaphragm valve with constant flow control dedicated to dispensing low and medium viscosity UV adhesives)

No.

IDH.218280


Associated products:
  1. LOCTITE 97115 (electric rotorspray used to apply anaerobic products to the internal cylindrical surfaces) (IDH.135557)
  2. LOCTITE Pulse RC50 (semi-automatic integrated dispenser compliant with Industry 4.0 standards) (IDH.2814024)
  3. LOCTITE 97233 (Luer-Lok, Adapter Kit (20 Luer-Loks, 5 Adapters)) (IDH.88672)
  4. LOCTITE 984684 (repair kit (diaphragm valve head, male elbow fitting, tip adapter) for Loctite 98009 diaphragm valve) (IDH.478567)
  5. LOCTITE 97972 (black, 1/4", 10mtr polyethylene-teflon hose used for supplying fluids to Loctite dispense valves) (IDH.142646)
Files to download:
  1. Manual 98009
Multimedia:
  1. Features and Benefits of the Loctite Automatic Dispense Valves

LOCTITE 98009 (precise diaphragm valve with constant flow control dedicated to dispensing low and medium viscosity UV adhesives)

LOCTITE 98009 (precise diaphragm valve with constant flow control dedicated to dispensing low and medium viscosity UV adhesives) (IDH.218280)


Associated products:
  1. LOCTITE 97115 (electric rotorspray used to apply anaerobic products to the internal cylindrical surfaces) (IDH.135557)
  2. LOCTITE Pulse RC50 (semi-automatic integrated dispenser compliant with Industry 4.0 standards) (IDH.2814024)
  3. LOCTITE 97233 (Luer-Lok, Adapter Kit (20 Luer-Loks, 5 Adapters)) (IDH.88672)
  4. LOCTITE 984684 (repair kit (diaphragm valve head, male elbow fitting, tip adapter) for Loctite 98009 diaphragm valve) (IDH.478567)
  5. LOCTITE 97972 (black, 1/4", 10mtr polyethylene-teflon hose used for supplying fluids to Loctite dispense valves) (IDH.142646)
Product description:
The LOCTITE Light Cure Dispensing Valve provides high-resolution stroke adjustment for accurate dispensing of small amounts of all low to medium viscosity adhesives. It is designed specifically for presssure-time appliactions and must be used in conjunction with a controller and product reservoir. The dispensing valve has single acting, spring return, stroke control. Fine adjustment of flow rate is achieved by turning the flow control dial on top of the valve. The valve can be used in stationary mounted applications or in combination with ad advancing slide. Further information about the product: biuro@woronko-kleje.pl

Recommended products:
  • Light curable adhesives, anaerobic retaining compounds, anaerobic threadlockers

    Features:
  • For applying miniature amounts,
  • Compact size and weight,
  • Stroke adjustment for fine-tuning dispense characteristic,
  • Fail Safe - spring assisted close,
  • Diaphagram valve, no seals,
  • Bubble free no-drip dispensing.

    Parameters:
  • Weight: 130 g
  • Max. Input Fluid Pressure: 5 bar (70 psi)
  • Mounting Hole: (1) 10-32 UNF
  • Dimensions (W x H x D): Ø 78,5 mm x 30 mm
  • Air Inlet Port: 1/4 '' tube fitting
  • Air Input: 5-6 bar (70-90 psi), filtered to a max. of 10 μm
