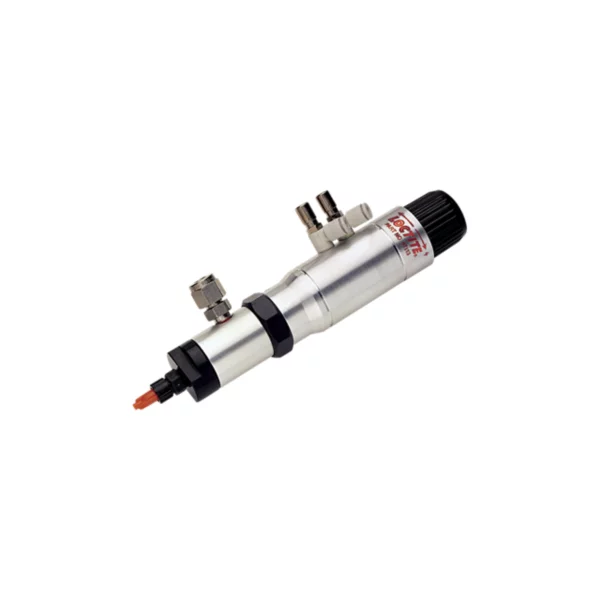

LOCTITE 97113 (stationary, precise dispense valve with suction function and 1/4" connection for low or medium viscosity products)
No.
IDH.88644
Associated products:
- LOCTITE 97239 (Shut-Off Valve Assembly, 1/4 inch feedline (97113)) (IDH.88674)
- LOCTITE Pulse RC50 (semi-automatic integrated dispenser compliant with Industry 4.0 standards) (IDH.2814024)
- LOCTITE 97291 (Actuator Assembly for 97113/97114 Valve) (IDH.505721)
- LOCTITE 97233 (Luer-Lok, Adapter Kit (20 Luer-Loks, 5 Adapters)) (IDH.88672)
- LOCTITE 97114 (stationary, precise dispense valve with suction function and 3/8" connection for high viscosity products) (IDH.88645)
- LOCTITE 97972 (black, 1/4", 10mtr polyethylene-teflon hose used for supplying fluids to Loctite dispense valves) (IDH.142646)
- LOCTITE 97152 (automatic, dual channel digital multifunction controller to actuate 1-2 dispensing valves and peripheral devices) (IDH.1275665)
- LOCTITE 97118 (advancing slide with a pitch of 50mm (moving, two-stage, cylindrical, two-piston guide + fastening clamp)) (IDH.142636)
- LOCTITE 97115 (electric rotorspray used to apply anaerobic products to the internal cylindrical surfaces) (IDH.135557)
LOCTITE 97113 (stationary, precise dispense valve with suction function and 1/4" connection for low or medium viscosity products)
Associated products:
- LOCTITE 97239 (Shut-Off Valve Assembly, 1/4 inch feedline (97113)) (IDH.88674)
- LOCTITE Pulse RC50 (semi-automatic integrated dispenser compliant with Industry 4.0 standards) (IDH.2814024)
- LOCTITE 97291 (Actuator Assembly for 97113/97114 Valve) (IDH.505721)
- LOCTITE 97233 (Luer-Lok, Adapter Kit (20 Luer-Loks, 5 Adapters)) (IDH.88672)
- LOCTITE 97114 (stationary, precise dispense valve with suction function and 3/8" connection for high viscosity products) (IDH.88645)
- LOCTITE 97972 (black, 1/4", 10mtr polyethylene-teflon hose used for supplying fluids to Loctite dispense valves) (IDH.142646)
- LOCTITE 97152 (automatic, dual channel digital multifunction controller to actuate 1-2 dispensing valves and peripheral devices) (IDH.1275665)
- LOCTITE 97118 (advancing slide with a pitch of 50mm (moving, two-stage, cylindrical, two-piston guide + fastening clamp)) (IDH.142636)
- LOCTITE 97115 (electric rotorspray used to apply anaerobic products to the internal cylindrical surfaces) (IDH.135557)
Product description:
The Stationary Applicator Valve is a robust dispensing valve designed for pressure-time applications. This valve is a modular design comprising a valve body and a pneumatic valve actuator, providing quick on-line serviceability. It also incorporates an adjustable suck-back feature which prevents dripping or stringing. The Stationary Applicator Valve 97113 is fitted with a 1/4 '' tube fitting for viscosities up to 10,000 mPas; model 97114 is fitted with 3/8 '' tube fitting for higher viscosities. The dispensing valve has a double-acting pneumatic actuator with spring assisted close. Separatre adjustment of the two throttle valves achieves adjustable opening and closing speed for process control. These valves can be used in stationary mounted applications or in combination with an advancing slide. Further information about the product: biuro@woronko-kleje.pl
Recommended products:
Acrylics, anaerobic adhesives, gel-type cyanoacrylates and light curable adhesives
Features:
Robust, seal-less dispensing valve Modular design of product shutoff valve & actuator provides on-line serviceaility Fail safe - spring assisted close Adjustable suck-back feature eliminates product dripping and stringing Double-acting cylinder allows adjustable opening and closing speed for process control
Parameters:
Weight: 340 g Product Pressure: max 12,5 bar (180 psi) Product Outlet: 1/4 '' - 26 UNF Luer-Lock output fitting Dimensions (W x H x D): 180 x 64 x 35 mm Air input: min 4 bar (60 psi), filtered to a max. of 10 µm
The Stationary Applicator Valve is a robust dispensing valve designed for pressure-time applications. This valve is a modular design comprising a valve body and a pneumatic valve actuator, providing quick on-line serviceability. It also incorporates an adjustable suck-back feature which prevents dripping or stringing. The Stationary Applicator Valve 97113 is fitted with a 1/4 '' tube fitting for viscosities up to 10,000 mPas; model 97114 is fitted with 3/8 '' tube fitting for higher viscosities. The dispensing valve has a double-acting pneumatic actuator with spring assisted close. Separatre adjustment of the two throttle valves achieves adjustable opening and closing speed for process control. These valves can be used in stationary mounted applications or in combination with an advancing slide. Further information about the product: biuro@woronko-kleje.pl
Recommended products:
Acrylics, anaerobic adhesives, gel-type cyanoacrylates and light curable adhesives
Features:
Parameters:
