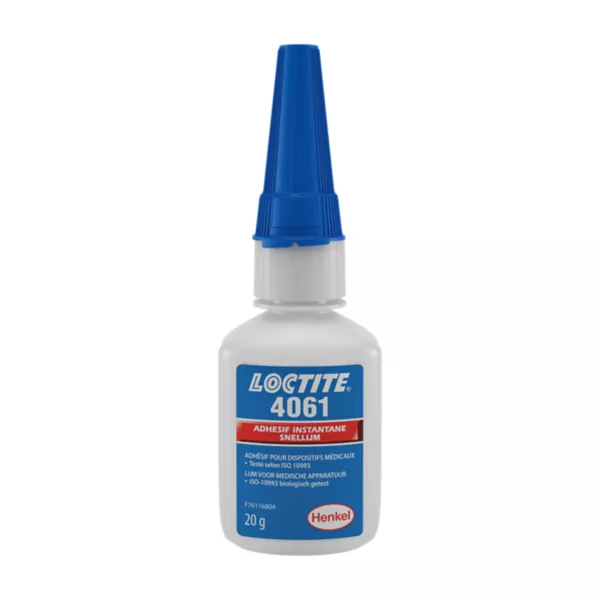

LOCTITE 4061 - 20g (medical, cyanoacrylate (instant) adhesive, colorless/transp
No.
IDH.231789
LOCTITE 4061 - 20g (medical, cyanoacrylate (instant) adhesive, colorless/transp
Product description:
LOCTITE® 4061™ is designed for bonding of plastics and elastomeric materials where very fast fixturing is required. Suitable for use in the assembly of disposable medical devices. Further information about the product: biuro@woronko-kleje.pl
ISO-10993
LOCTITE® 4061™ has been tested to Henkel's test protocols based on ISO 10993 biocompatibility standards, as a means to assist in the selection of products for use in the medical device industry.
Directions for use:
1. For best performance bond surfaces should be clean and free from grease. You can use LOCTITE SF 7063.
2. This product performs best in thin bond gaps (0.05 mm).
3. Excess adhesive can be dissolved with Loctite cleanup solvents, nitromethane or acetone.
Storage:
Store product in the unopened container in a dry location. Storage information may be indicated on the product container labeling. Optimal Storage: 2 °C to 8 °C. Storage below 2 °C or greater than 8 °C can adversely affect product properties. Material removed from containers may be contaminated during use. Do not return product to the original container.
Parameters:Lap Shear Strength, after 24 hours in 22 °C :
- Steel (grit blasted), N/mm² : 18 to 26
-Aluminum (etched), N/mm² : 11 to 19
-Zinc dichromate, N/mm² : 6 to 14
-ABS, N/mm² : 4 to 6
-PVC, N/mm² : 4 to 6
-Polycarbonate, N/mm² : 3.5 to 4.5
-Phenolic, N/mm² : 5 to 15
-Neoprene, N/mm² : 5 to 15
-Nitrile, N/mm² : 5 to 15
Tensile Strength, ISO 6922:
-Steel (grit blasted), N/mm² : 12 to 25
-Buna-N, N/mm² : 5 to 15
Fixture Time, seconds:
-Steel (degreased) : 10 to 20
-Aluminum : 2 to 10
-Zinc dichromate : 30 to 90
-Neoprene : <5
-Rubber, nitrile : <5
-ABS : 2 to 10
-PVC : 2 to 10
Full technical information can be found in technical data sheet
LOCTITE® 4061™ is designed for bonding of plastics and elastomeric materials where very fast fixturing is required. Suitable for use in the assembly of disposable medical devices. Further information about the product: biuro@woronko-kleje.pl
ISO-10993
LOCTITE® 4061™ has been tested to Henkel's test protocols based on ISO 10993 biocompatibility standards, as a means to assist in the selection of products for use in the medical device industry.
Directions for use:
1. For best performance bond surfaces should be clean and free from grease. You can use LOCTITE SF 7063.
2. This product performs best in thin bond gaps (0.05 mm).
3. Excess adhesive can be dissolved with Loctite cleanup solvents, nitromethane or acetone.
Storage:
Store product in the unopened container in a dry location. Storage information may be indicated on the product container labeling. Optimal Storage: 2 °C to 8 °C. Storage below 2 °C or greater than 8 °C can adversely affect product properties. Material removed from containers may be contaminated during use. Do not return product to the original container.
Parameters:
- Steel (grit blasted), N/mm² : 18 to 26
-Aluminum (etched), N/mm² : 11 to 19
-Zinc dichromate, N/mm² : 6 to 14
-ABS, N/mm² : 4 to 6
-PVC, N/mm² : 4 to 6
-Polycarbonate, N/mm² : 3.5 to 4.5
-Phenolic, N/mm² : 5 to 15
-Neoprene, N/mm² : 5 to 15
-Nitrile, N/mm² : 5 to 15
-Steel (grit blasted), N/mm² : 12 to 25
-Buna-N, N/mm² : 5 to 15
-Steel (degreased) : 10 to 20
-Aluminum : 2 to 10
-Zinc dichromate : 30 to 90
-Neoprene : <5
-Rubber, nitrile : <5
-ABS : 2 to 10
-PVC : 2 to 10
Full technical information can be found in technical data sheet
