Product description:

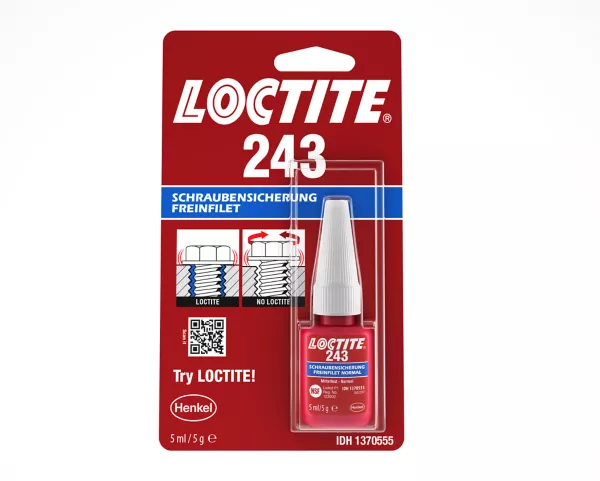

LOCTITE 243 is designed for the locking and sealing of threaded fasteners which require normal disassembly with standard hand tools. The product cures when confined in the absence of air between close fitting metal surfaces and prevents loosening and leakage from shock and vibration. The thixotropic nature of LOCTITE 243 reduces the migration of liquid product after application to the substrate. LOCTITE 243 provides robust curing performance. It not only works on active metals (e.g. brass, copper) but also on passive substrates such as stainless steel and plated surfaces. The product offers high temperature performance and oil tolerance. It tolerates minor surface contaminations from various oils, such as cutting, lubrication, anti-corrosion and protection fluids. LOCTITE® 243™ is particularly suited for locking threaded fasteners of various equipment such as pumps, gearboxes, motors and vehicles. Further information about the product: biuro@woronko-kleje.pl

Steps to achieve the best adhesive results:
FOR ASSEMBLY:
1. For best results, clean all surfaces (external and internal) with a LOCTITE SF 7063 cleaning solvent and allow to dry
2. If the cure speed is too slow, use appropriate activator LOCTITE SF 7471 or LOCTITE SF 7649. Please see the Cure Speed vs. Activator graph for reference. Allow the activator to dry when needed
3. Shake the product thoroughly before use
4. To prevent the product from clogging in the nozzle, do not allow the tip to touch metal surfaces during application
5. For Thru Holes, apply several drops of the product onto the bolt at the nut engagement area
6. For Blind Holes, apply several drops of the product to the lower third of the internal threads in the blind hole, or the bottom of the blind hole
7. For Sealing Applications, apply a 360° bead of product to the leading threads of the male fitting, leaving the first thread free. Force the material into the threads to thouroughly fill the voids. For bigger threads and voids, adjust product amount accordingly and apply a 360° bead of product on the female threads also
8. Assemble and tighten as required

FOR DISASSEMBLY:
9. Remove with standard hand tools
10. In rare instances where hand tools do not work because of excessive engagement length, apply localized heat to nut or bolt to approximately 250 °C. Disassemble while hot
11. Apply localized heat to the assembly to approximately 250 °C. Disassemble while hot

FOR CLEAN UP:
12. Cured product can be removed with a combination of soaking in a LOCTITE SF 7200 solvent and mechanical abrasion such as a wire brush

Storage:
Store product in the unopened container in a dry location. Storage information may be indicated on the product container labeling.
Optimal Storage: 8 °C to 21 °C. Storage below 8 °C or greater than 28 °C can adversely affect product properties.
Material removed from containers may be contaminated during use. Do not return product to the original container.
Henkel Corporation cannot assume responsibility for product which has been contaminated or stored under conditions other than those previously indicated.

Parameters:
  • Thread size : to M36
  • Strength : medium
  • Time to get full strength (22 °C):
    -Steel : 3 hours
    -Stainless steel: 3 hours
    -Brass : 30 minutes
    -Zinc dichromate : 6 hours
    -Zinc : 24 hours
  • Time to obtain initial strength (22 °C):
    -Steel : 15 minutes
    -Stainless steel : 15 minutes
    -Brass: 5 minutes
    -Zinc dichromate : 30 minutes
    -Zinc : 30 minutes
  • Breakaway Torque for nuts M10 : 26 Nm
  • Prevail Torque for nuts M10: 5 Nm
  • Working temperature: from -55 °C to +180 °C
  • Color : blue


Full technical information can be found in the technical data sheet
